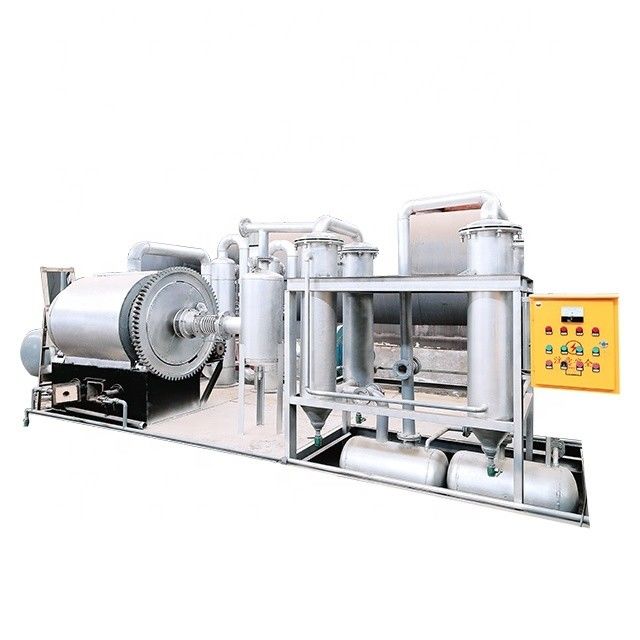

8-10Tons Daily Capacity Waste Tire Pyrolysis Machine 2200*6600mm

a. In the design of pyrolysis key device, completely overcome the local heat uneven, easy to break, low yield, short life and other unfavorable factors of the current vertical flat bottom pyrolysis plant.

b. With fast and practical feed and slag system.

c. Efficient gas heating system. In the process of refining, when the heated gas reaches 150 degrees Celsius, it will produce a lot of gas which can not be liquefied in normal temperature and pressure methane to butane.These gases are fully burned by specially designed gas nozzles, will produce a lot of energy which greatly saves energy.

d.Flue dust removal system has a desulfurization dust cather(qualified), equipped with two ways water impact cyclone dust removal chamber, which can ensure the discharge of flue outlet reach safe discharge standard.

Model:LJ-9                                                    Raw material:Waste tire, waste plastic, waste rubber

Structure:Horizontal                                       24hours processing capacity:8-10tons raw materials

24hours oil output:3.2-4.5tons fuel oil             Work pressure:Atmospheric

Host speed:0.4rmin                                      Power:15.5KW

Cooling:Water cooling                                    Lose water(TH):8

Transport:External gear drive                         Heating method:Directly

Installation:Foundation                                  Noise dB(A):≤85

Reactor size length*wideth:2200x6600           Working form:batch

Weight of Reactor(T):29                                Manufacuring time:20days


1, To improve the quality and functions of products is our purpose, customer's satisfaction is our principle.

2, With fast and practical feed and slag system.

  Efficient gas heating system.

3, stable product quality , supply, the         lifetime after sale.
