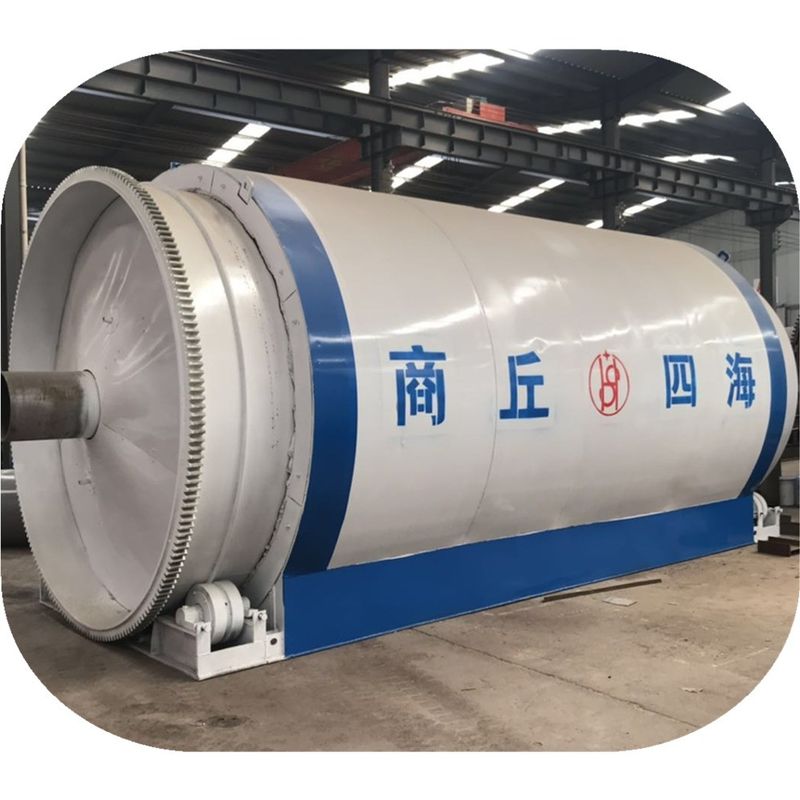

300sq meters Area Required Tire Pyrolysis Plant with Advanced Features

About us:

Shangqiu Sihai Energy Technology Co., Ltd. is a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management over 20 years.

Our company covers an area of 37,000 square meters and has an experienced professional technical team which includes 2 senior engineers with more than 20year's experience, 16 technicians with more than 10 year's experience.

Model of Tire Pyrolysis Plant:

Working process of  Tire Pyrolysis Plant:

First, the raw materials are put into the reactor, and then seal the feeding in door, later start the machine and the reactor will be rotating and heated by coal, natural gas, wood or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 350-460°C; oil steam will flow through oil gas separator, light component will enter the condensers and meanwhile the heavy oil will be discharged automatically into in heavy oil tank. The liquefied part will be condensed as crude oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.

End of Product from Engineer Available Tire To Oil Pyrolysis Plant:

Installation: We will be in charge of arranging our engineer to go to your place to guide the installation and train your workers how to operate waste tire pyrolysis plant,and you will be in charge of the food, accommodation and round air tickets.

Land requirement:  300sq meters(10m*30m)

Exporting Experience:
