Energy Mining Oil Purifier Newly Produced Waste Plastic Tire to Diesel Refinery Plant

1. Raw material:

a. Waste oil .example: waste diesel, waste oil residue etc.

b. rubber oil

c. plastic oil

d. waste original oil

e. waste engine/motor oil/lubricating oil/car used oil

F. crude oil

2. Components of Equipment

       A. Vertical reactor/Horizontal reactor

    B. Vacuum system

    C. Condensation system

    D. Collector

    E. Oil collecting tank

    F. Residue tank

    G. Oil-gas separator

    H. Water cooling system

    I. Water seal

    J. Pressure & Temperature monitoring gauge

    K.Smoke desulphurization and dust removal system

    L. Gas heating system (waste gas process system)

3.product:

A.Diesel and Gasoline  depending on the quality of raw material generally 70%~75%

B.Water   depending on the quality of raw material generally little

C.Waste gas we have waste gas recycling device to recycle waste gas and it can be used as fuel to heat the reactor.that can save the energy.

D.Residual  depending on the quality of raw material generally 10~20%,it can used as bitumen or waterproof material.

 4.brief introduction of technology:

Reduce pressure distillation equipment with good decolor and destinke. Due to it take the reduce pressure with pipe condensation oil-gas separator collecting system ,which can remove the odor of crude oil very well ,and final oil production will be purer ,even the oil output will be higher .In a word ,this new distill technology will help us to make more profits .

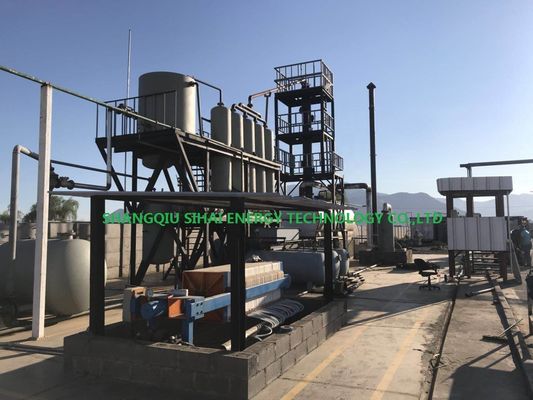

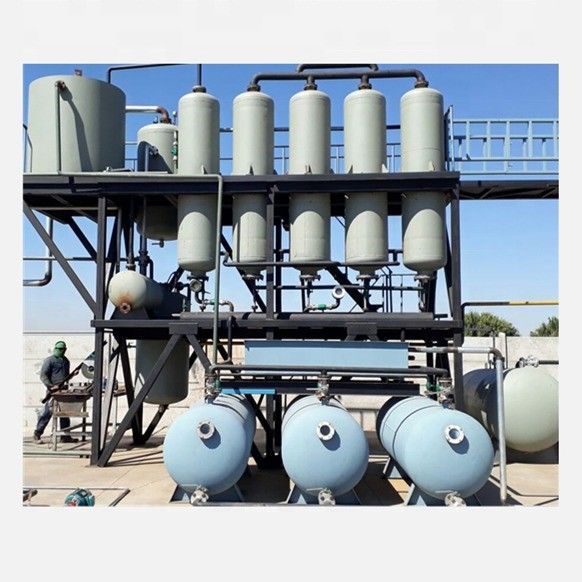

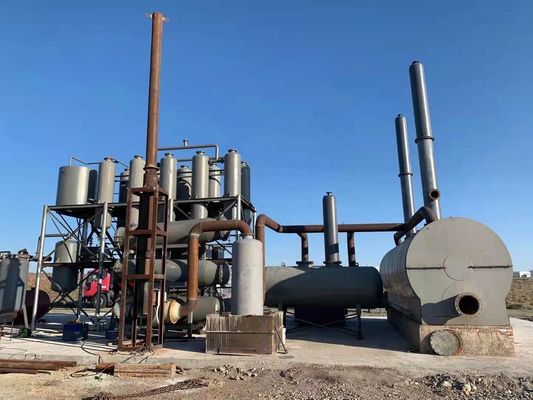

5.Picture of distillation reactor

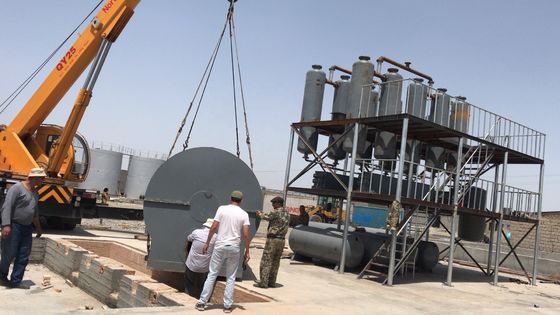

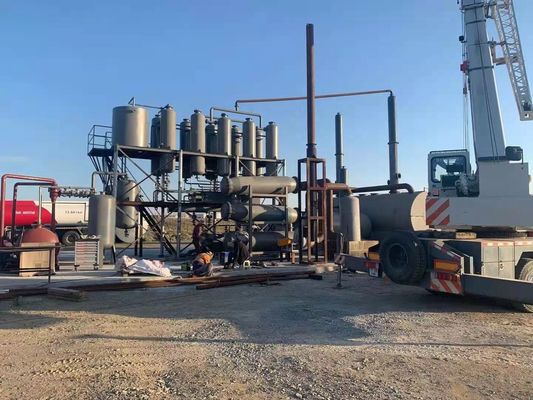

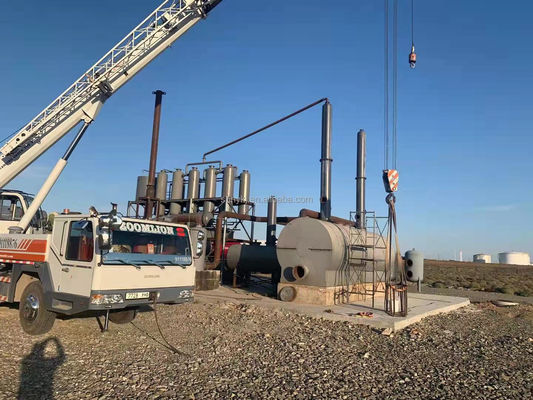

We can send our engineer to your side for guiding the installation and training your workers operation.
