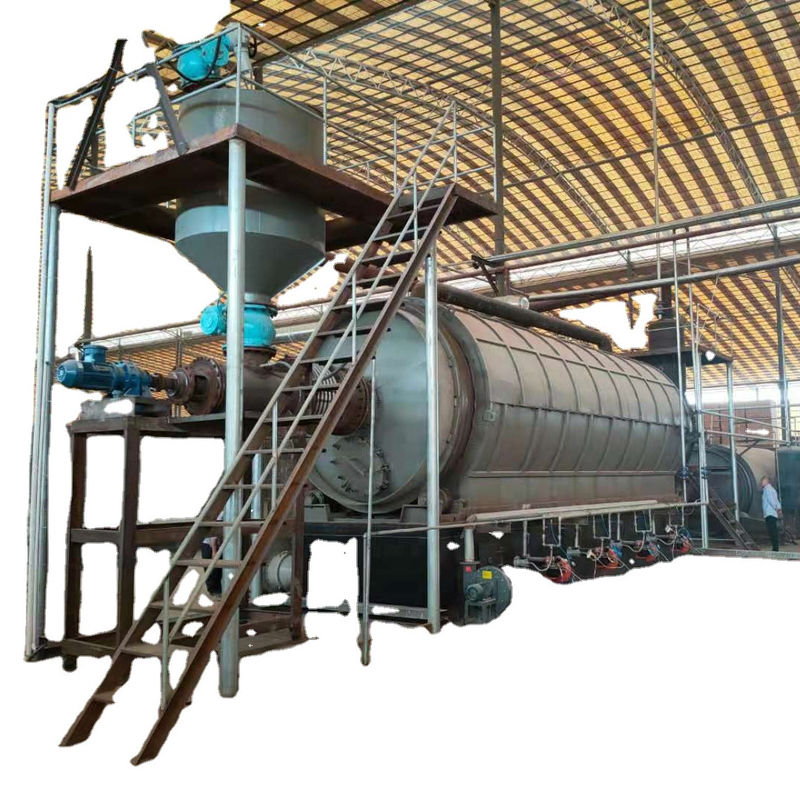

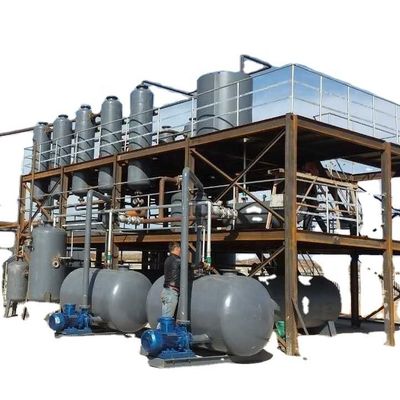

Continuous Distillation and Purification of Waste Engine Oil for Reuse in Reclamation

Model:ZL-7                                                   Raw material:Waste tire\plastic\rubber\engine oil

Structure:Horizontal\Vertical                            24hours processing capacity:8-10tons raw materials

24hours oil output:7.2-9tons diesel                  Work pressure:Negative pressure\Vacuum

Host dimensions:φ1600*4000                         Power:16.0KW

Cooling:Water cooling                                    Lose water(T\D):4

Heating method:Directly\Auxiliary\Electric heating

Noise dB(A):≤85                                           Working form:Continuous

Installation:Have basis                                   Installation area:150square meters

Manufacuring time:20days

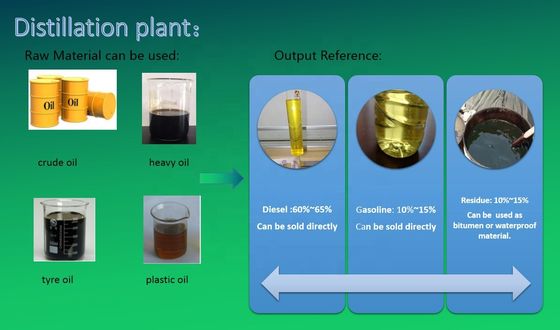

Reduce pressure distillation new technology, is the new technology are developed as per the characters of tire oil, plastic oil which refine from waste tire, plastic. This new technology refine the crude oil, waste oil to the diesel and gasoline. More the oil quality is better than the original ordinary pressure distillation technology, which show on purity, transparency, lightness. Reduce pressure distillation new technology, which is the technology of 24 hours continuous produce, which transform the indirect produce model of original ordinary pressure distillation technology, which overcome the discontinuous drawback of small scale produce. Due to this technology is take “dry type” with negative pressure, so it will refine the oil safer, and operation is simpler, even solve the high temperature problems from original ordinary pressure technology. This technology will do deodorization process to the raw material oil automatically by “dry type” reduce pressure distillation method, special for the safety of refining crude oil(tire oil, plastic oil) and waste engine oil.

1, To improve the quality and functions of products is our purpose, customer's satisfaction is our principle.

2, With fast and practical feed and slag system.

  Efficient gas heating system.

3, stable product quality , supply, the         lifetime after sale.
